Piano hinge hatch install pictuers?

Boating related questions,small projects, custom work and talk go here.
Post Reply
User avatar
Seth
Posts: 375
11
Location: Owensville, MO

Piano hinge hatch install pictuers?

Post by Seth »

Anybody have close up pictures of how they used piano hinge to install hatches? I am going to make one big hatch for the front deck of my boat and wanted to see a few pictures of other peoples homemade hatches with piano hinge.

clarkbre
Posts: 160
9
Location: Everett, WA

Piano hinge hatch install pictuers?

Post by clarkbre »

Here's a hatch I built in one of my seats to store my fuel tank. It's hard to see in the pics but the piano hinge lays very flat. I've used piano hinges on other projects and they are a great way to hinge a hatch door. I like that it's hinged all the way across and no screws show when the hatch is closed.

2000 Lund WC16, 1997 Suzuki DT15C
Boat modification thread: https://tinboats.net/forum/viewtopic.ph ... 61#p141161

User avatar
wasilvers
Posts: 1988
10
Location: Sussex, WI

Piano hinge hatch install pictuers?

Post by wasilvers »

This question was just what I was wondering too.

Also does the top of the hinge lie flush with the top of the hatch, or does it stick up a little bit?
And if you are capeting a hatch, do you install the hinge after carpeting?

Thank! :D
Will - Originally from Texas, now fishing for Bass in Wisconsin
1978 Sea Nymph Fishing Machine rebuilt in 2009

User avatar
dyeguy1212
Posts: 2651
10
Location: Top of the Food Chain
Contact:

Piano hinge hatch install pictuers?

Post by dyeguy1212 »

wasilvers wrote:This question was just what I was wondering too.

Also does the top of the hinge lie flush with the top of the hatch, or does it stick up a little bit?
And if you are capeting a hatch, do you install the hinge after carpeting?

Thank! :D
Depends on the size hinge you buy. Most of the time they will list a "closed width" and you want to find something slightly wider than the width of the hatch door, so that the hinging part (round part) is just barely above flush.

And normally you will want to carpet first, so that you can wrap the carpet around all side of the hatch for a clean look.

clarkbre
Posts: 160
9
Location: Everett, WA

Piano hinge hatch install pictuers?

Post by clarkbre »

wasilvers wrote:This question was just what I was wondering too.

Also does the top of the hinge lie flush with the top of the hatch, or does it stick up a little bit?
And if you are capeting a hatch, do you install the hinge after carpeting?

Thank! :D
For my application, the hige lays flush with the top of the seat so it doesn’t stick up at all. But, my hatch can only open a little past 90 degrees. If I wanted it to open 180 degrees, the barrel of the hinge would have to stick up past the surface of the seat.

As far as carpeting, I’d carpet the whole thing and then install the hinge. You’ll end up with a cleaner more finished product.
2000 Lund WC16, 1997 Suzuki DT15C
Boat modification thread: https://tinboats.net/forum/viewtopic.ph ... 61#p141161

User avatar
Nussy
Posts: 399
10
Location: Green Bay, WI

Piano hinge hatch install pictuers?

Post by Nussy »

Hinge 1.JPG
HInge Closed.JPG

MNHunter505
Posts: 178
7
Location: Suffolk, VA

Piano hinge hatch install pictuers?

Post by MNHunter505 »

Any other pics...I tested a couple pieces with carpet and all...I found it pretty hard to do. I am only using 5/8 in plywood with 1 1/4 in width hinge. With the thick carpet I got, it seems like I should get thicker hinges. I bought the .050 Alum piano hinge from McMaster.
Maybe I should have gone with SS.
1996 Voyager 70 Series 16ft jon boat, 1979 Evinrude 35hp
http://www.tinboats.net/forum/viewtopic ... 21&t=29553

User avatar
bcbouy
Posts: 1381
9
Location: british columbia canada

Piano hinge hatch install pictuers?

Post by bcbouy »

my 2010 g3
Attachments
the forward hinge is tucked under,just above the drink holders
the forward hinge is tucked under,just above the drink holders
ot the stern i did an accordian style hatch for plenty of access also stainless and 3/4" plywood for these ones. also ss deck latches on all hatches.
ot the stern i did an accordian style hatch for plenty of access also stainless and 3/4" plywood for these ones. also ss deck latches on all hatches.
36" ss piano hinge on 1/4"ply.i used decking screws instead of stainless for more holding power
36" ss piano hinge on 1/4"ply.i used decking screws instead of stainless for more holding power
if all else fails....stop using all else

MNHunter505
Posts: 178
7
Location: Suffolk, VA

Piano hinge hatch install pictuers?

Post by MNHunter505 »

wow, those pics look good bcbouy. Where did you get your hinges? I see they are SS, what thickness and width? thx.
1996 Voyager 70 Series 16ft jon boat, 1979 Evinrude 35hp
http://www.tinboats.net/forum/viewtopic ... 21&t=29553

User avatar
Jay415
Posts: 433
8
Location: Long Island, NY

Piano hinge hatch install pictuers?

Post by Jay415 »

I used one 4' hinge, cut half of it but not completely. So one hinge accommodates two doors and there is no gap as there would be between two separate hinges. It looks like one continuous hinge when the hatches are closed. Here's the link to the piano hinge in my install.

https://www.tinboats.net/forum/viewtopic ... 35#p242035
Jay415 wrote:Now I need to make the back hatch into 2 hatches. First I needed to add the support where the 2 hatches will seam. Then I marked and cut the board and compensating for the carpet and movement of the doors, I left a 5/8" gap.

For the finished panels, I really didn't want to have a gap between the 2 hinges for each door. So I carefully cut half the hinge, so I would still have a full barrel when the hinge was in the closed position.

This allows 1 hinge with 2 halves to swing freely and separately. (Note: if you are going to try this, take notice that a piano hinge is usually crimped at the hinge point to hold the pin in the hinge. If I was to notch the other side of the hinge, it would not swing separately and freely. YOU MUST CUT THE CORRECT SIDE, crimps not shown in pics))
Jay415 wrote:Here are some more pics of the hatches and the hinge. Very happy with how it is coming out. It's exactly the look I wanted. (no hinge gap)

User avatar
bcbouy
Posts: 1381
9
Location: british columbia canada

Piano hinge hatch install pictuers?

Post by bcbouy »

MNHunter505 wrote:wow, those pics look good bcbouy. Where did you get your hinges? I see they are SS, what thickness and width? thx.
1/2"x1/2" stainless.they came in 6 ft. lengths.i don't know the thickness,but the're sturdy.my wife works as an office manager at a fab shop specializing in railroad equipment.i got all of my build supplies thru her at wholesale.she just slipped them into other orders,so I don't really know where they came from :wink:
if all else fails....stop using all else

User avatar
Jonboat Jerry
Posts: 603
8
Location: Hudson, Fl

Piano hinge hatch install pictuers?

Post by Jonboat Jerry »

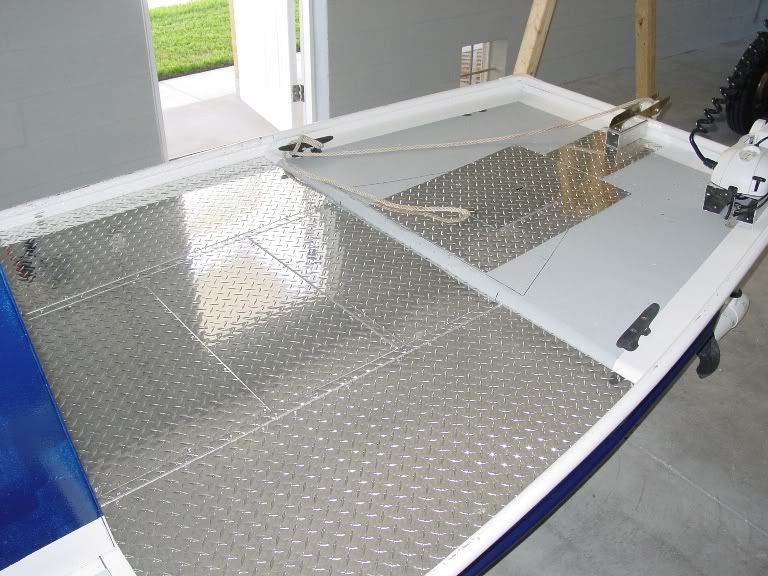

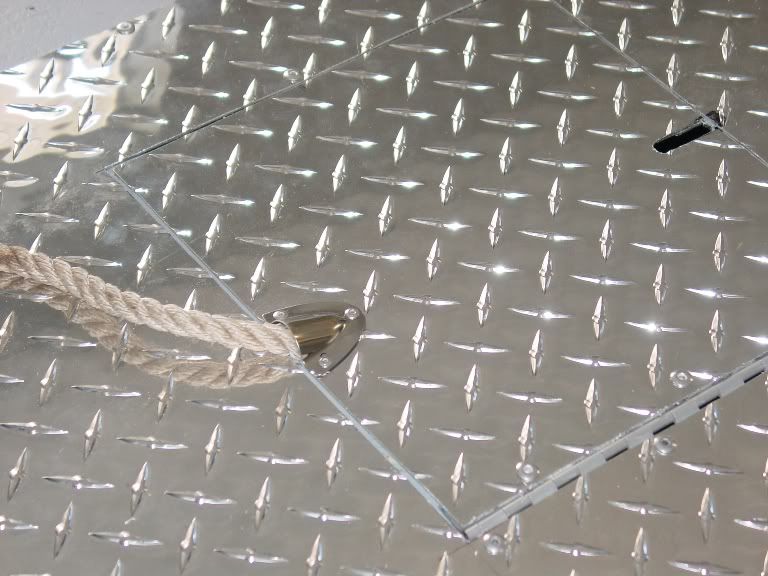

Here is page 10 of my build. I used Diamond Plate and flush mounted the hinge. This required a trim strip
on the deck side of the hinge to keep everything flush.

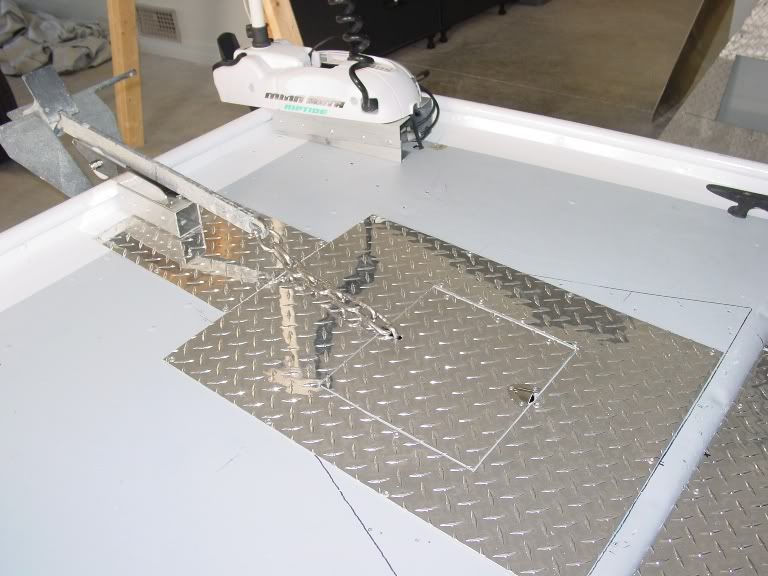

Center hatch is for access to the fresh water tank

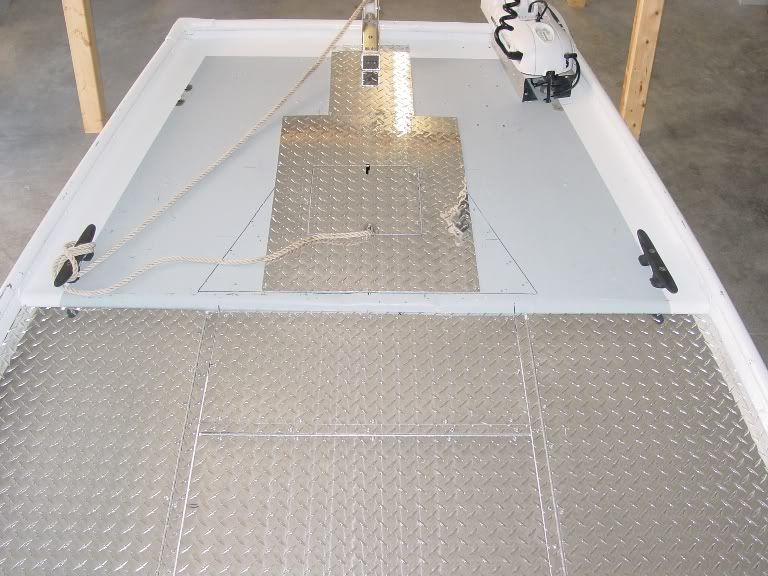

looking down from console

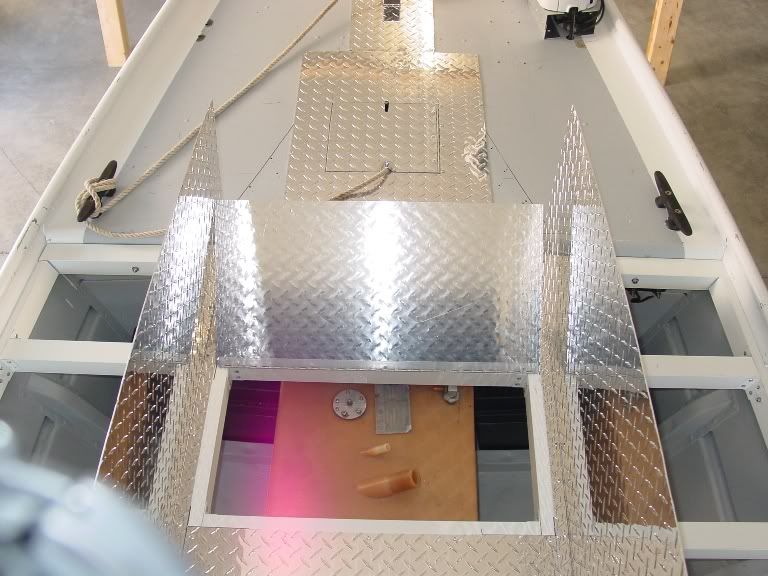

same, but with hatches open

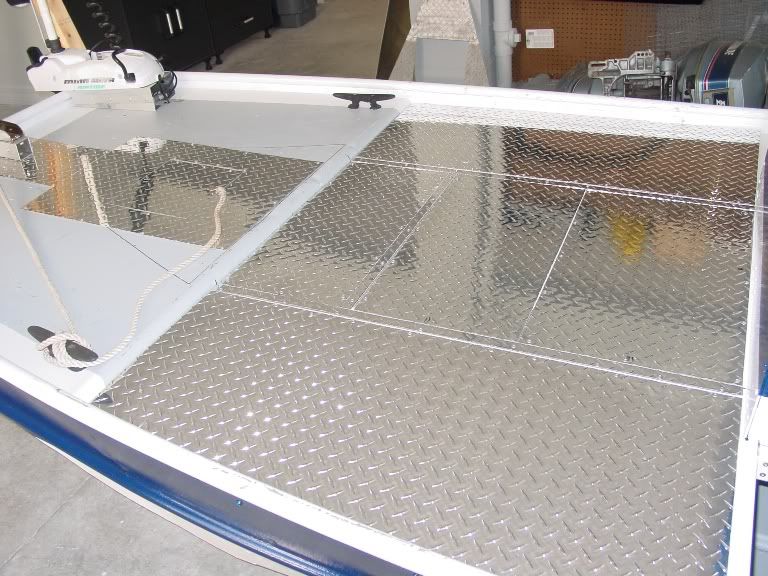

starboard side
Here's that clamshell
again
Hope this helps....Jerry
20' Lowe Olympic Jon Boat AlumaZilla
http://www.tinboats.net/forum/viewtopic ... 21&t=20643
HB 1197C

chevyrulz
Posts: 371
6

Piano hinge hatch install pictuers?

Post by chevyrulz »

alumazilla obviously inspired my build, as did many others on here


test fit looks great, but the hatch door doesn't open as far as i'd like in this picture:

so I trimmed the hatch down & this is the final install, allowing the hatch to open much more:

here's a few more pictures i have, don't seem to have any other good close ups, if u want to see more of mine, send me a PM & I'll snap some more when i get home. the white stuff is 5200, i put it everywhere i drilled a hole since it's all getting painted camo. looks kinda ghetto now though lol
